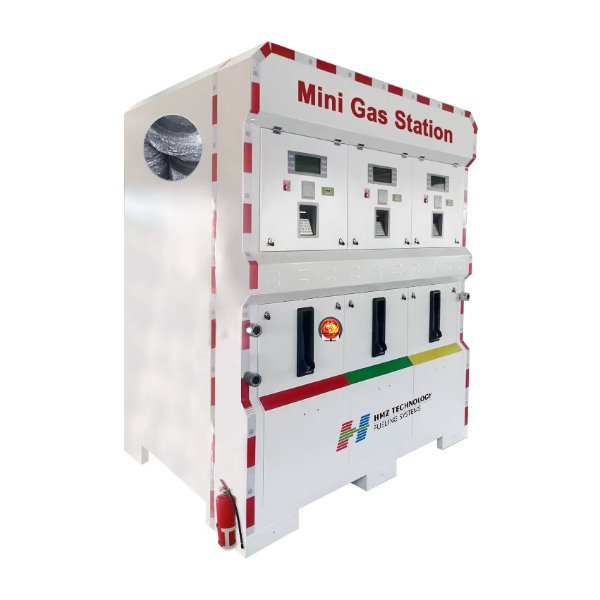

This mini skid-mounted gas station is designed for mobility, safety, and ease of deployment, making it a perfect fueling solution for locations where traditional fueling infrastructure is unavailable or impractical. The integrated fuel tank, pump, and dispenser are factory pre-installed, requiring only basic site leveling and electrical connection.
| Vertical Type | 3 Nozzles | 2 Nozzles | ||||
| 6000L | 3000L | 1500L | 4000L | 2000L | 1000L | |
| Size | 1900×2100×2100 | 2000×1200×1900 | 1300×1410×1900 | 1900×1400×1860 | 1670×1410×1900 | 1350×1000×1500 |
| Weight | 1150kg | 670kg | 440kg | 780kg | 440kg | 375kg |
| Shell metal thickness | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Oil tank metal thickness | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Rated power of a single oil pump | 500w | 500w | 500w | 500w | 500w | 500w |
| Rated current of a single oil pump | 40A | 40A | 40A | 40A | 40A | 40A |
| Rated flow of a single oil pump | 5-45L/min | 5-45L/min | 5-45L/min | 5-45L/min | 5-45L/min | 5-45L/min |
Related Mobile Fuel Supply Solution
For customers who need a complete on-site fuel supply system, HMZ also provides an explosion-proof skid-mounted fuel station integrating fuel storage, dispensing, unloading, safety protection, and optional monitoring systems. It is suitable for mining sites, construction projects, fleet depots, oilfields, and remote fuel supply applications.
