Skid-Mounted • Modular • Customizable Capacity • Electronic Filling Scales • Integrated Pumping • Container-Friendly Design

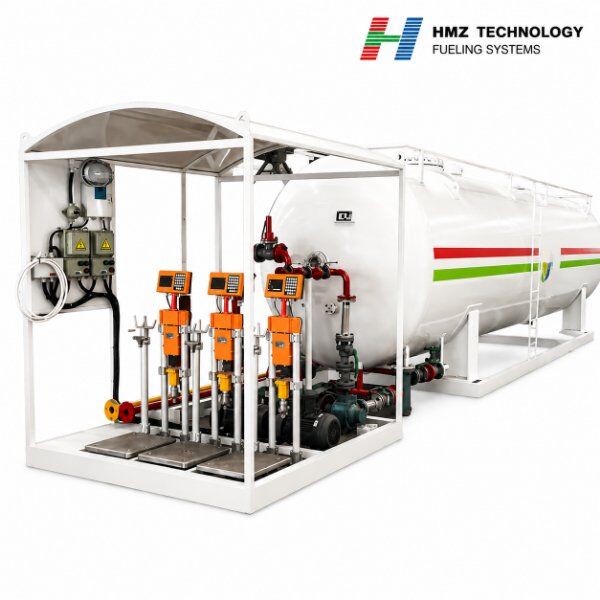

The HMZ Customizable LPG Skid-Mounted Filling Plant is an integrated LPG storage, transfer, and cylinder filling solution designed for LPG distributors, gas filling businesses, industrial users, remote communities, and new LPG market development projects.
Unlike a conventional LPG filling station that requires multiple systems to be designed and installed separately on site, the HMZ skid-mounted solution integrates the main LPG storage and filling equipment into a compact engineered package.
Depending on the project configuration, the system can integrate:
The configuration shown on this page represents one typical HMZ solution.
HMZ can customize the storage capacity, number of filling scales, pump configuration, cylinder filling arrangement, electrical system, structural layout, color, and other technical features according to the customer’s required filling capacity, local operating conditions, and project requirements.
Every LPG market is different.
A small local LPG distributor may require a compact plant with only a few filling positions, while a regional LPG distribution center may require significantly greater storage capacity and higher cylinder filling throughput.
For this reason, HMZ does not limit customers to one fixed configuration.
Our LPG skid-mounted filling plants can be engineered around the actual project.
Typical configurable parameters include:
This makes the HMZ system suitable for both entry-level LPG businesses and larger commercial filling operations.
The LPG storage, transfer, filtration, piping, filling, and control functions are engineered as an integrated system.
This significantly reduces the amount of equipment integration required at the customer’s site.
HMZ offers different LPG storage capacities according to project demand.
Typical effective volume range:
5,000–50,000 liters
Typical capacity range:
Approximately 3–30 MT
The final tank capacity is selected according to expected daily LPG demand, cylinder filling volume, LPG supply frequency, available site area, and local project requirements.
The system can be equipped with HMZ electronic LPG filling scales for controlled cylinder filling.
A typical filling scale configuration can support different LPG cylinder sizes and filling requirements.
Depending on the selected model, filling scale configuration may include:
The number of filling positions can be increased according to required production capacity.
A typical HMZ configuration can incorporate two LPG pumps — one operating and one standby.
The standby arrangement provides additional operational reliability and helps reduce production interruption if maintenance is required on the primary pump.
Alternative pump arrangements can be engineered according to project requirements.
LPG can be filtered before entering the pump to help protect downstream components and improve system reliability.
Filter configuration can be selected according to the overall process design.
Customers are not restricted to two filling scales.
HMZ can engineer systems with different numbers of filling positions according to:
This allows the plant to grow with the customer’s LPG business.
Compared with a conventional LPG plant assembled entirely on site, the skid-mounted concept centralizes major equipment on an engineered structural platform.
This helps simplify:
HMZ can optimize the structural design according to international transportation requirements.
Depending on the selected tank capacity and final configuration, suitable shipping arrangements can be developed to simplify overseas transportation and site delivery.
The HMZ LPG Skid-Mounted Filling Plant can be configured for a wide range of LPG distribution and cylinder filling applications.
For commercial filling of household and commercial LPG cylinders.
Suitable for regional distributors establishing their own cylinder filling capability.
A modular solution for companies developing multiple LPG filling locations.
Suitable for locations where construction of a large conventional LPG filling plant may not be practical.
For industrial facilities requiring LPG storage and cylinder filling capability.
Temporary or semi-permanent LPG supply solutions for major project sites.
LPG storage and cylinder filling support for remote mining camps and industrial facilities.
Compact modular design can simplify equipment transportation to markets with limited infrastructure.
Suitable for companies developing new LPG distribution businesses where capacity may need to expand over time.
| Item | Typical / Customizable Configuration |
|---|---|
| Product Type | LPG Skid-Mounted Filling Plant |
| Medium | LPG / Propane / Butane |
| Effective Storage Volume | 5,000–50,000 L |
| Approx. LPG Capacity | 3–30 MT |
| Tank Material | Q345R Alloy Steel or Project-Specific |
| Typical Design Pressure | 1.77 MPa |
| Typical Working Pressure | 1.6 MPa |
| LPG Pumps | Duty + Standby Configuration Available |
| Filling Scales | 2 Scales Typical / Quantity Customizable |
| LPG Filtration | Available Before Pump |
| Pump Power Supply | Typical 380V / 50Hz |
| Filling Scale Power | Configurable According to Selected Model |
| Installation | Integrated Skid-Mounted |
| Color | White or Customized |
| Filling Connection | Customized for Cylinder Type |
| Layout | Customized |
| Branding | OEM / Customized |
| Project Engineering | Available |
Important: Technical specifications are subject to final engineering confirmation. Tank capacity, pressure design, electrical configuration, filling arrangement, applicable compliance requirements, and component selection may vary according to project location and customer requirements.
One available HMZ configuration uses a 20 m³ horizontal LPG storage tank integrated with the LPG pumping and electronic cylinder filling system.
Typical configuration includes:
This configuration is shown as an example only.
Customers can select smaller or larger storage capacities and different filling configurations according to their actual business requirements.

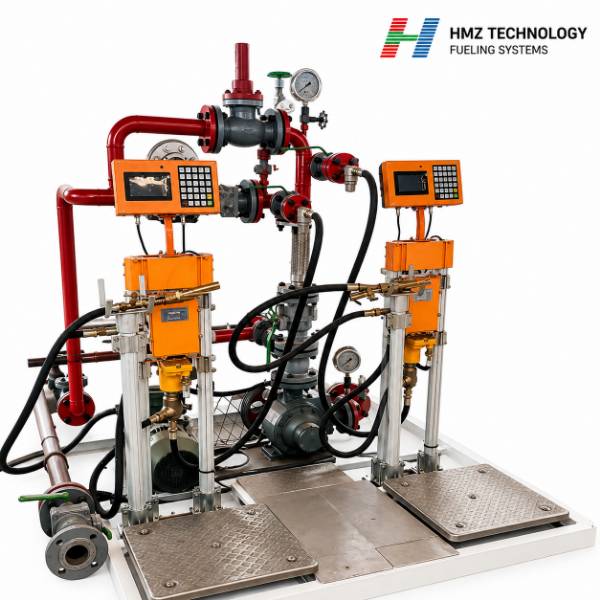

HMZ electronic LPG filling scales are designed for LPG cylinder filling applications.
A typical HMZ filling scale configuration may provide:
Different scale models and configurations can be selected according to the cylinder types used in the destination market.
The operating process can be configured according to the project, but a typical LPG cylinder filling process follows several main stages.
Bulk LPG is stored in the integrated pressure vessel.
The LPG pump transfers product from the storage tank toward the filling section.
LPG passes through the filtration system before entering critical pumping or filling components according to the selected process arrangement.
Operators connect the LPG cylinder to the filling scale.
The electronic filling system measures the cylinder weight and controls the filling process according to the configured filling parameters.
Once the preset filling condition is reached, filling is stopped, and the cylinder can be disconnected and transferred to the next handling stage.
Choose a storage capacity according to your business volume.
HMZ can provide different tank sizes within the available product range and evaluate special capacities for project-specific requirements.
Possible configurations can include:
The final quantity should be determined according to required hourly or daily filling capacity.
Connections and filling arrangements can be adapted for different LPG cylinders used in international markets.
Customers should provide:
HMZ engineers can then select the appropriate filling arrangement.
Options may include:
Electrical systems can be engineered according to the destination market and confirmed project requirements.
Standard color:
White
Optional:
The skid can be engineered according to:
A conventional LPG filling facility may require separate procurement and on-site integration of storage vessels, pumps, filling equipment, piping, valves, control systems, and supporting structures.
A skid-mounted solution transfers a significant portion of this integration work to the manufacturing environment.
This can provide several advantages:
Major equipment can be assembled before shipment.
The main process equipment arrives as an integrated package.
Pumps, piping, filling equipment, and controls are engineered together.
Customers can source a more complete LPG filling package from one supplier.
For distributors developing multiple filling locations, a standardized HMZ platform can be customized and replicated across different markets.
HMZ provides project engineering support from initial concept through equipment delivery.
Depending on project scope, engineering support may include:
To recommend the right LPG skid-mounted filling plant, please provide:
HMZ will evaluate the information and prepare a project-specific configuration.
HMZ supports distributors, EPC contractors, LPG companies, and international equipment partners with customized manufacturing.
Services can include:
An LPG skid-mounted filling plant integrates LPG storage, pumping, piping, cylinder filling, and associated equipment onto an engineered structural platform, reducing the amount of separate equipment installation required at site.
The current HMZ product range can be configured with approximately 5,000 to 50,000 liters of effective storage volume, depending on project requirements.
No. The 20 m³ configuration is only one example. HMZ can provide different tank capacities and filling arrangements.
Yes. The number of LPG filling scales can be selected according to the required filling capacity.
Yes. Cylinder dimensions, filling weight, and valve/interface information should be provided during project engineering.
The product platform is intended for LPG applications including propane and butane, subject to final engineering confirmation of the specific medium and configuration.
No. A two-pump duty/standby arrangement is one available configuration. Pump quantity and capacity can be customized.
Yes. Equipment color and branding can be customized.
Yes. OEM, private-label, and customized manufacturing services are available.
The modular design allows the initial plant to be selected with future business growth in mind. Expansion requirements should be discussed during the engineering stage so the appropriate system architecture can be selected.
HMZ specializes in integrated fuel and gas handling equipment for international projects.
Our approach combines:
Instead of asking customers to adapt their project to one fixed machine, HMZ develops the equipment configuration around the project’s actual operational requirements.
Whether you need a compact LPG filling skid for a growing distribution business or a higher-capacity system with multiple filling positions, HMZ can engineer the configuration to meet your specific requirements.
Send us your required storage capacity, cylinder size, daily filling volume, destination country, and available power supply.
Our engineering team will recommend a suitable LPG skid-mounted filling solution for your project.
