LPG Skid Refueling Plant

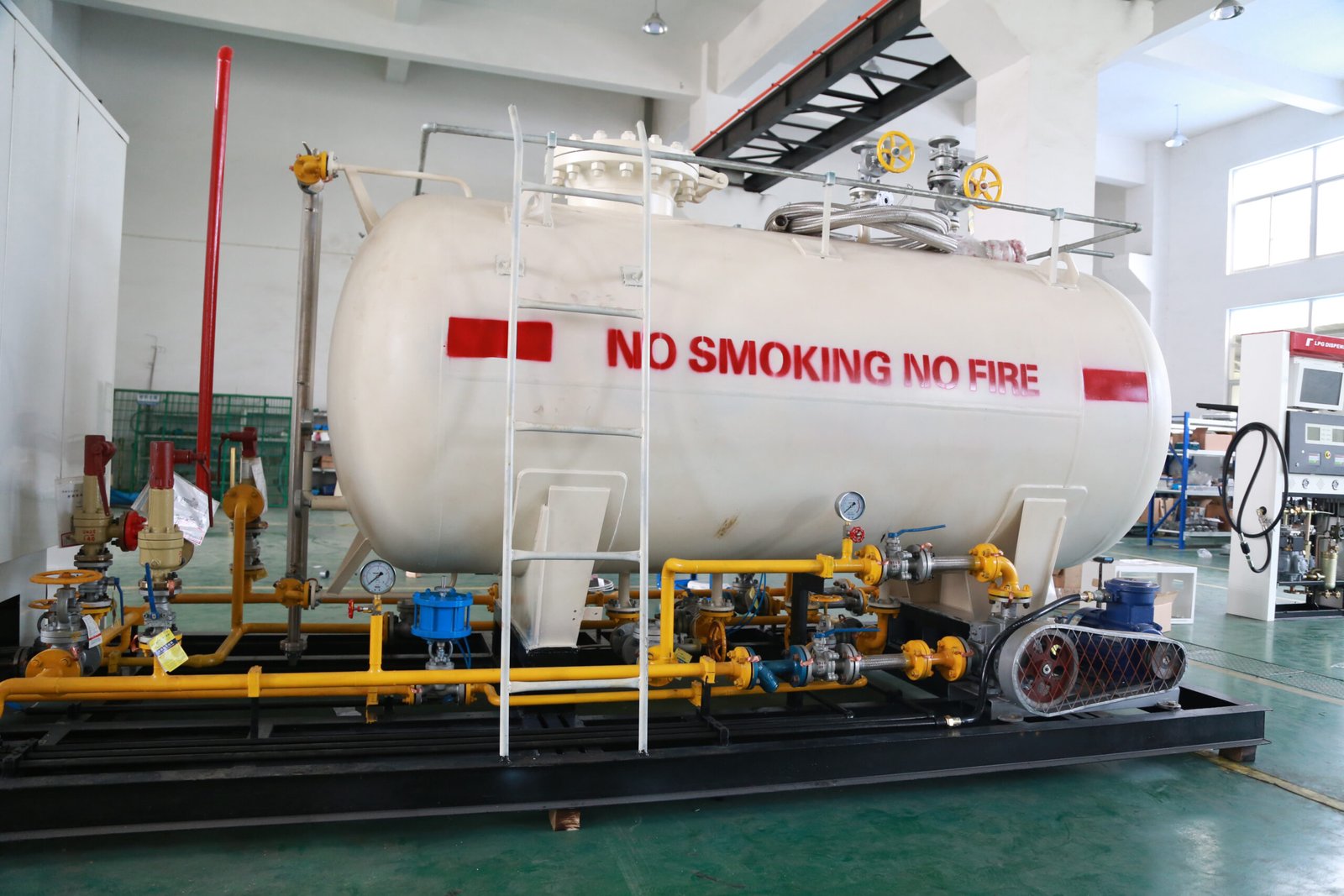

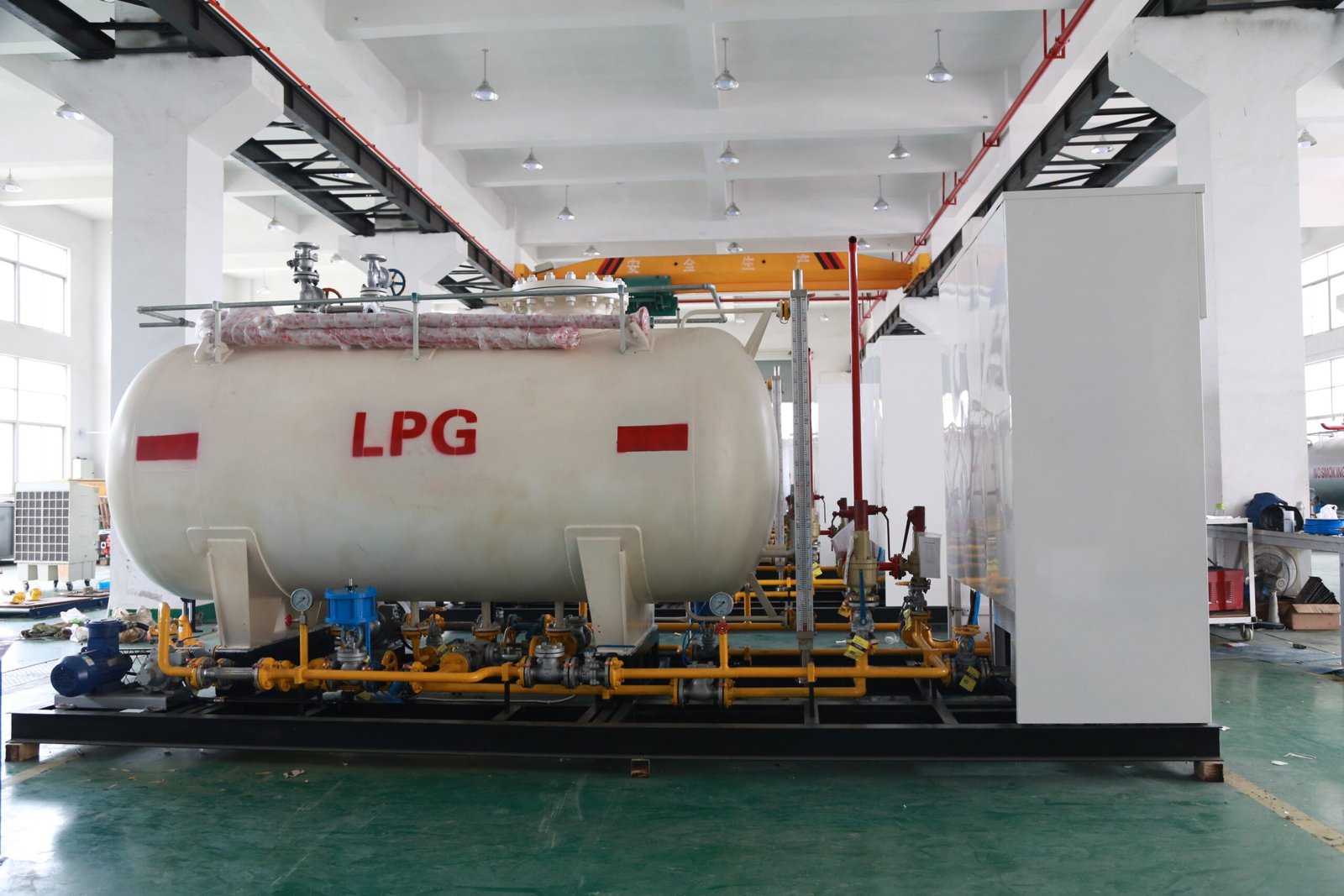

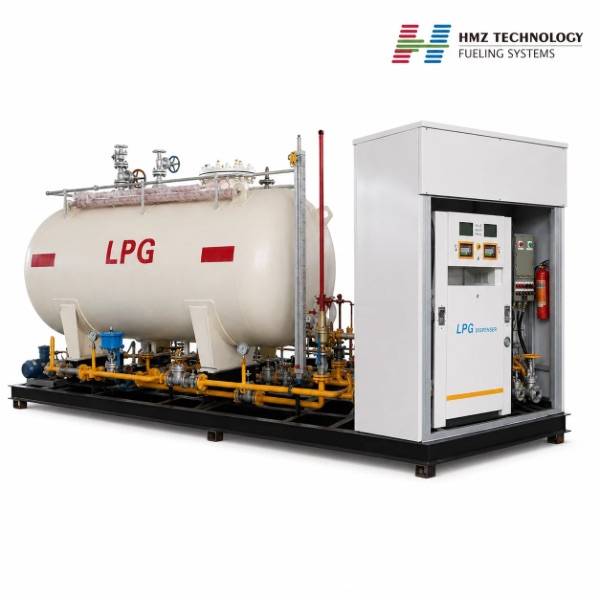

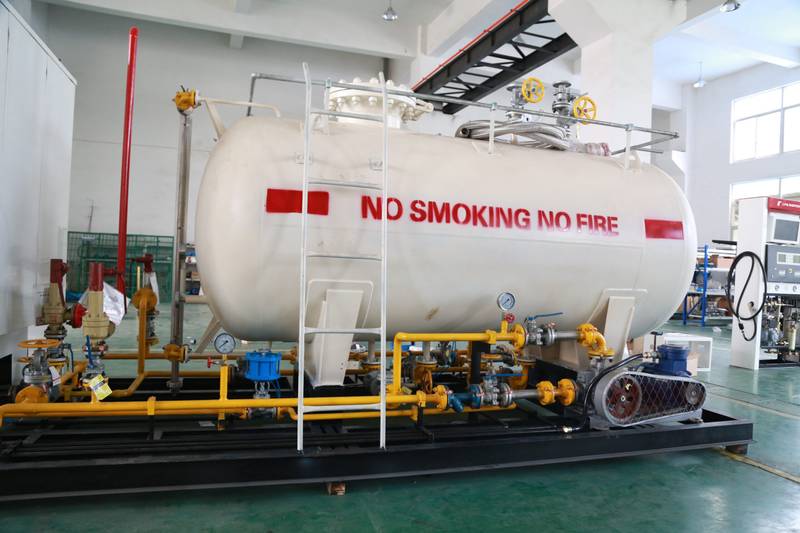

HMZ LPG Skid ASS(full name: Liquefied Petroleum Gas Skid Assembly) is composed of four main parts including an LPG tank, gas pump and motor, LPG dispenser, and piping system, a one-stop package solution for the terminal of LPG distribution, its setup will benefit the proprietors with less valuable time & expenditures, simple operation & maintenance and high-level quality guaranteed.

Additional information

Tank Type	Horizontal Cylindrical
Design Temperature	-40 ° C / +50 ° C max
Design Pressure	17.5bar
Test Pressure	26.5bar
Application	Vehicles/ Cooking cylinder, Campling Cylinder

Product Details:

LPG Skid Refueling Plant Specifications

LPG Sked ASS	5cbm	10cbm	20cbm
Length/mm	3545	4297	8297
Diameter/mm	1400	1800
Weight/kg	2000	3180	5400
Material	Q235R（Thickness:12mm）
Working temperature	-10~+40℃
Designed Pressure	1.77MPa
Proof Pressure	1.62MPa
Max Pressure	1.85MPa
Safety standard	TSG21-2016 GB/T150.1~150.4-2011 /NB/T47042-2014 /JB/T4711-2003/GB5713-2014 /GB/T9948-2013 /NB/T47008-2010 /NB/T47018.2/3/4-2017

Component List:

Capacity: 5CBM/10CBM/20CBM, can be customized.
Horizontal Cylindrical lpg Tank : Material: Q345R Size: DN1500*2.9 Thickness: 1CM
LPG pump YQB5-5 with motor : Speed:600RPM Flow rate:84LPM Power: 4kw Inlet: 2 inch, Outlet: 2 inch Temp:-40 ~ +50 degree

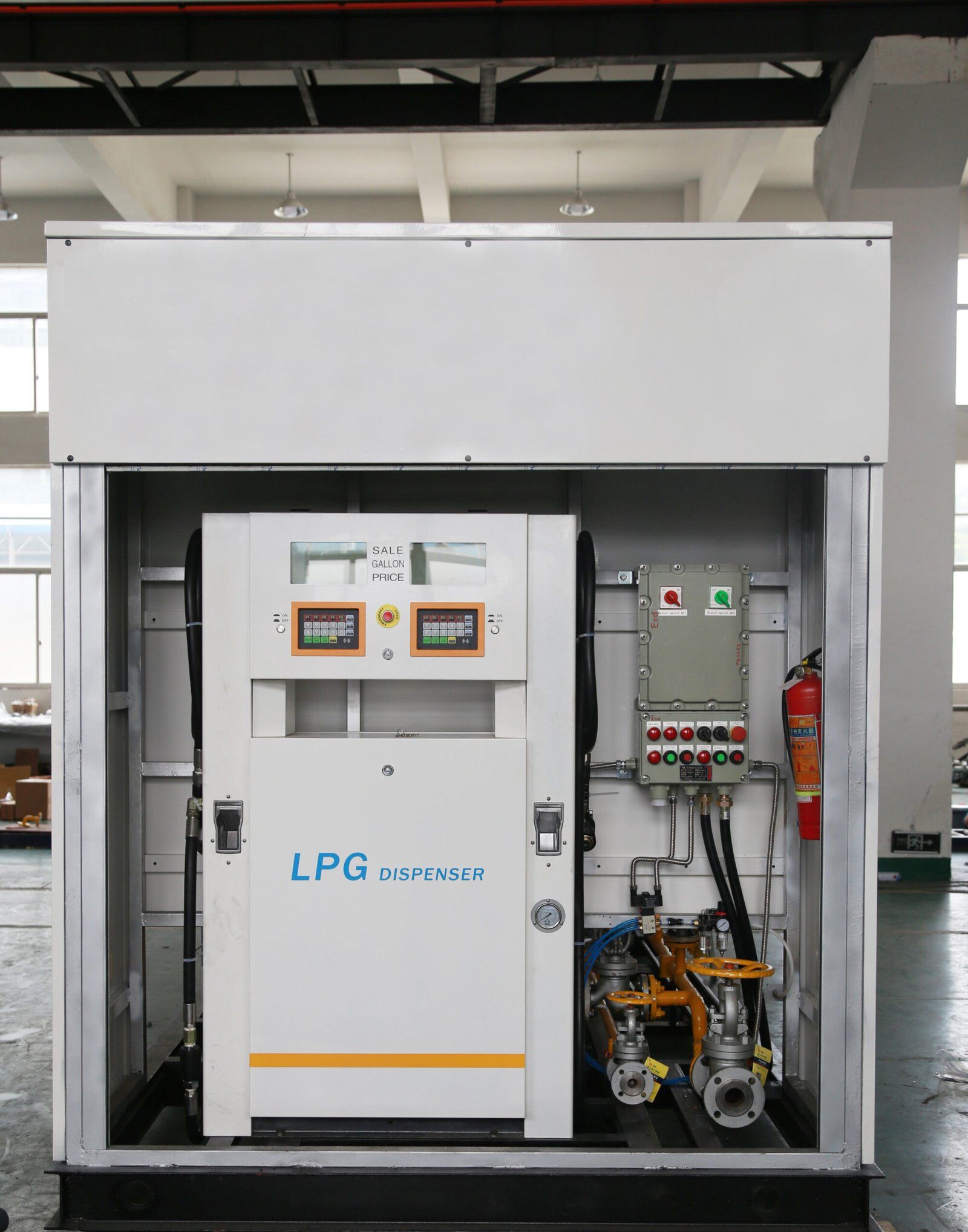

LPG dispenser with single nozzle: Filling flow rate: 35LPM 1 x Air separator 1 x 4-piston flow meter 1 x LPG filling nozzle for vehicles 1 x LPG hose with length of 4.5Meter 1 x Electronic calculator with 2 keyboard and 4 display board

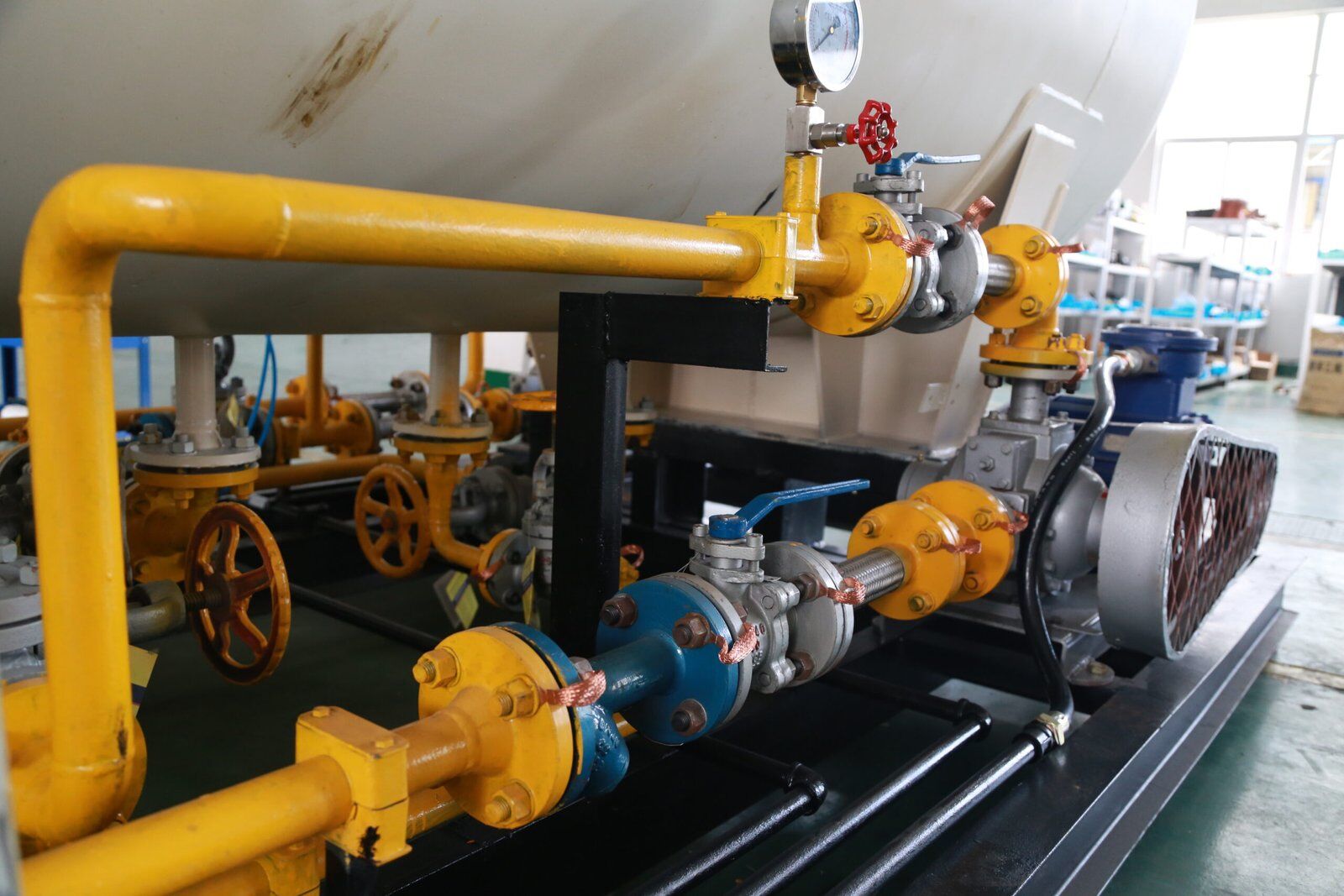

Ball valve : DN50, Material: CS
Welded flange: DN25 Material: CS
Safety valve : DN50, Material:CS
Germany standard Y type filter: DN50, Material: CS

LPG Skid Refueling Plant

Additional information

Product Details:

LPG Skid Refueling Plant Specifications

Component List:
