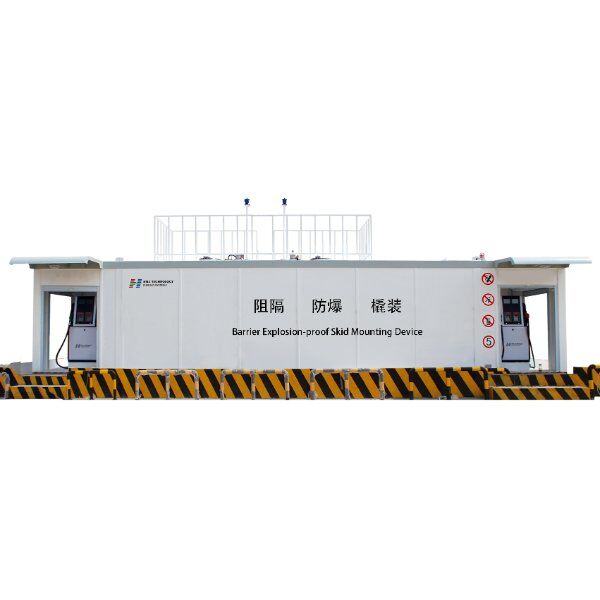

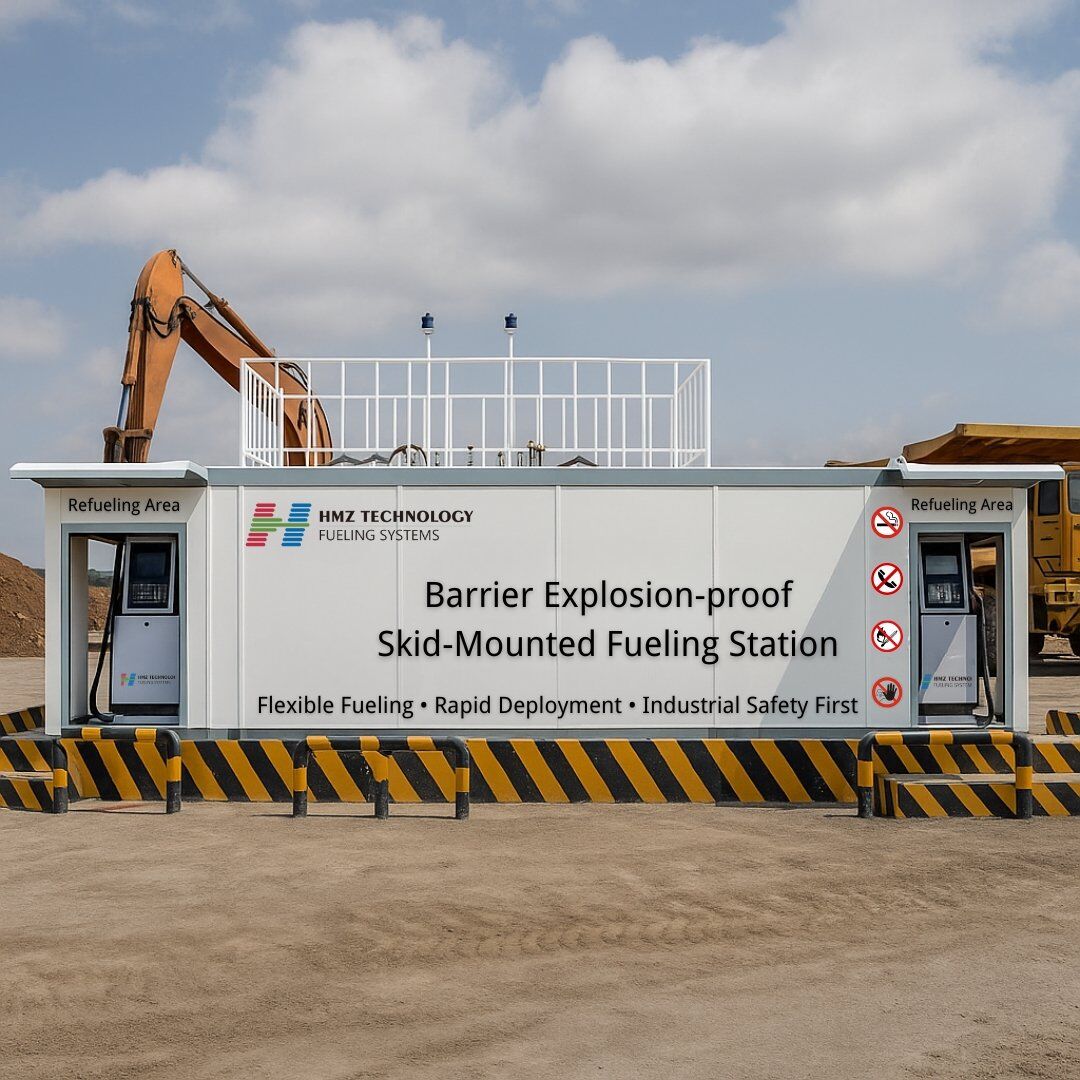

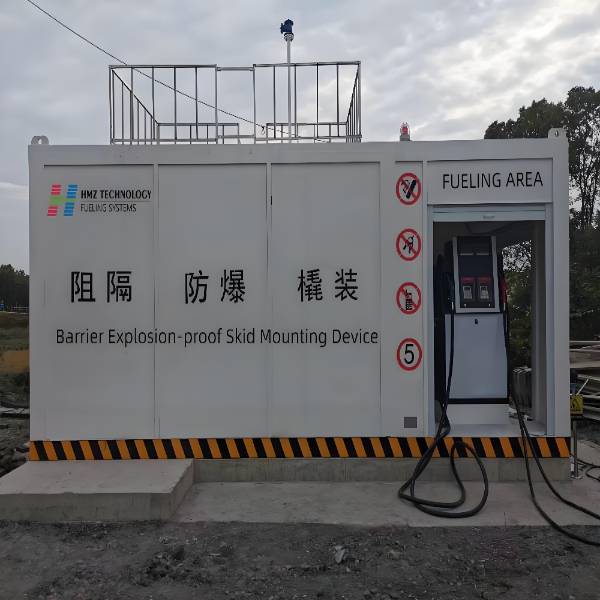

HMZ Technology presents a cutting-edge solution for mobile fuel supply: the Barrier Explosion-proof Skid Mounting Device. Engineered for high-risk and remote environments, this all-in-one refueling system integrates fuel storage, dispensing, fire protection, and leak detection in a modular, portable format. Whether deployed in mining zones, temporary construction sites, or military logistics, our skid units offer safe, efficient, and compliant fueling—wherever you need it most.
🔹 Explosion-Proof Construction: Full compliance with international safety standards (e.g., ATEX, IECEx).
🔹 Integrated Tank + Dispenser: All components pre-installed inside the unit for plug-and-play deployment.
🔹 Built-in Fire Suppression System: Automatic fire detection and extinguishing modules.
🔹 Remote Monitoring Ready: Supports optional IoT-based leak detection and telemetry systems.
🔹 Customizable Capacity: Available from 10,000L to 60,000L and beyond.
🔹 Rapid Deployment: No need for on-site civil works or foundations—set up in hours.
🏗️ Construction Sites & Infrastructure Projects
⛏️ Mining and Oilfield Operations
🚛 Fleet & Logistics Depots
🏕️ Military Bases & Emergency Response Sites
🏞️ Remote Towns and Island Communities
🚧 Fueling in Explosion-Hazard Zones
| ●Standard △Optional | ||||||
| Model | 10FT | 20FT | 30FT | 40FT | 50FT | 60FT |
| Dimension L*W*H (mm) | 4000*1800*2000 | 6000*1800*2000 | 8000*2000*2200 | 10000*2800*3000 | 11000*3000*3000 | 12500*3000*3000 |
| Weight (KG) | 3200 | 4150 | 5300 | 7800 | 8560 | 9600 |
| Input power | AC220V △ AC380V△ | |||||
| Fuel dispenser | 2 Nozzles | 2 Nozzles | 2 Nozzles | 2 Nozzles/4 Nozzles | 2 Nozzles/4 Nozzles | 2 Nozzles/4 Nozzles |
| Unloading pump | Ex Pipeline Pump | |||||
| Oil unloading | 30 m³/h | 30 m³/h | 30 m³/h | 60 m³/h | 60 m³/h | 60 m³/h |
| Tanks | 2 tanks • 5 FT each | 2 tanks • 10 FT each | 2 tanks • 15 FT each | 2 tanks • 20 FT each | 2 tanks • 25 FT each | 2 tanks • 30 FT each |
| Flow rate | 5L~60L/Min | |||||
| Vacuum | ≧ 54KPa | |||||
| Accuracy | ±0.3% | |||||
| Ex-proof | Ex de lb mb IIB T4 GB | |||||
| Hose length | 4M●6M△ | |||||
| Hose | 3/4″● 1″△ | |||||
| Nozzle | Automatic Nozzle 3/4″● 1″△ | |||||
| Swivel | 3/4″● 1″△ | |||||
| Break away | 3/4″● 1″△ | |||||
| Option device | Custom Appearance | |||||
| Option price | IC Card System | |||||
All HMZ skid-mounted fuel systems are rigorously tested and certified to meet international safety and operational standards. Our products are designed in compliance with:
ATEX Directive
ISO 9001:2015
IECEx
National Fire Protection Association (NFPA) guidelines
Full documentation and third-party inspection reports are available upon request.
Looking for a specific layout, tank size, or automation system? HMZ Technology offers full customization to meet your operational needs, from military-grade security features to solar-powered autonomous models.
📩 Email us at [hmzfuelstation@gmail.com]
📱 WhatsApp: +86-181 5408 8119
🌐 Or visit: https://hmzfuelstation.com
Reliable. Modular. Certified.
We provide not just a product, but a complete mobile fueling solution backed by years of engineering, field experience, and international service support.
Contact HMZ Technology today to get a quote on your explosion-proof mobile skid solution.
Let us help you set up a safe, fast, and fully integrated fueling station—anytime, anywhere.
