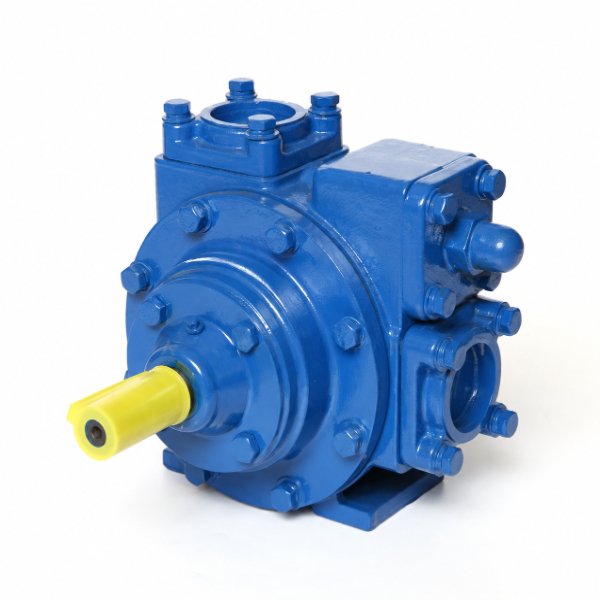

HMZ YB Series Sliding Vane Pump is designed for fuel transfer and light oil delivery applications. It is widely used in fuel stations, oil depots, tank trucks, refueling systems, and industrial liquid transfer projects.
The pump adopts a sliding vane structure with a built-in by-pass valve. During operation, the rotor drives the sliding vanes to move the liquid smoothly and efficiently. With nodular cast iron construction and self-lubricating vanes, the YB Series provides stable performance, reliable operation, and long service life in demanding fuel transfer environments.
The YB Series pump is designed with a built-in by-pass valve, helping protect the pump system and improve operational safety during fuel transfer.
The sliding vane structure allows the pump to deliver high flow at relatively low rotational speed. This helps reduce wear, improve efficiency, and support stable liquid transfer.
The YB Series can handle diesel, gasoline, kerosene, light oil, and other compatible liquids. It is suitable for both volatile and slightly viscous liquid transfer applications.
The self-lubricating vane design helps improve pump reliability and reduce maintenance requirements during long-term operation.
The main pump body is made of durable cast iron material, providing strong mechanical performance for industrial fuel transfer conditions.

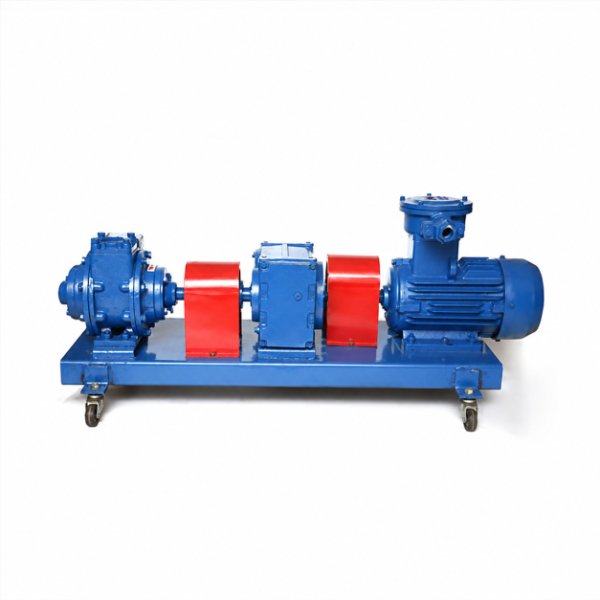

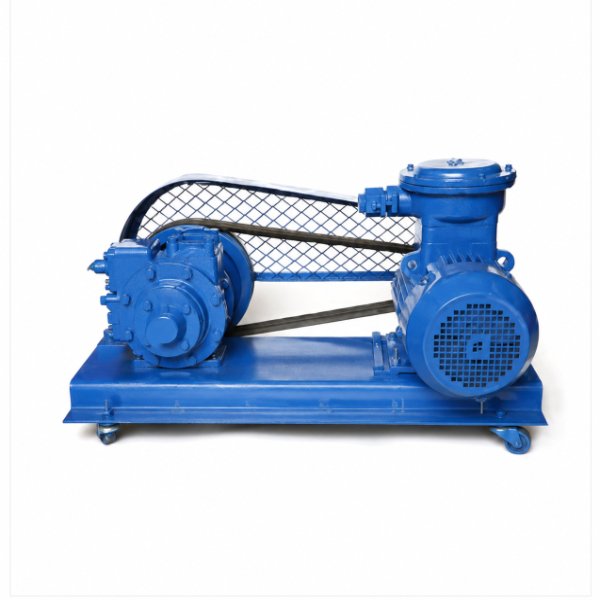

The pump can be configured with coupling drive, a V-belt drive, or a diesel engine drive according to different site requirements.
| Model | Description | Pump Speed | Flow Rate | Max. Pressure | Vacuum | Port Size | Motor Power |
|---|---|---|---|---|---|---|---|
| YB50 | 50 mm / 2 inch | 400–640 RPM | 150–300 L/min | 5 Bar | 0.5 Bar | 2″ F BSPP | 2.2 kW |
| YB65 | 65 mm / 2.5 inch | 400–640 RPM | 300–500 L/min | 5 Bar | 0.5 Bar | 2.5″ F BSPP | 4 kW |
| YB80 | 80 mm / 3 inch | 400–640 RPM | 600–1000 L/min | 5 Bar | 0.5 Bar | 3″ F BSPP | 7.5 kW |
| YB100 | 100 mm / 4 inch | 500 RPM | 1500–1900 L/min | 5 Bar | 0.5 Bar | 4″ F BSPP | 18.5 kW |
Applicable Drive Structure: Coupling Drive / V-Belt Drive / Diesel Engine Drive
Note: Final specifications can be adjusted according to liquid type, flow requirement, working pressure, power supply, and installation conditions.
HMZ YB Series Sliding Vane Pump is suitable for:
HMZ provides reliable fuel station equipment and industrial fuel transfer solutions for customers in different markets. The YB Series Sliding Vane Pump is designed to meet practical requirements for stable fuel delivery, high-flow transfer, and long-term operation.
From model selection to project configuration, HMZ can support customers with suitable pump options based on flow rate, fuel type, installation method, and working environment.
The YB Series Sliding Vane Pump is mainly used for transferring diesel, gasoline, kerosene, light oil, and other compatible liquids in fuel stations, oil depots, tank trucks, and industrial fuel transfer systems.
A sliding vane pump can provide stable flow, good suction performance, and high transfer efficiency. It is especially suitable for fuel and light oil transfer applications.
Yes. The YB Series pump is designed with a built-in by-pass valve to support safer and more stable operation.
HMZ can provide YB50, YB65, YB80, and YB100 models, covering different flow rates and connection size requirements.
Yes. The YB Series is suitable for tank truck fuel transfer applications, depending on the selected model, drive method, and installation requirements.
The pump can support coupling drive, V-belt drive, and diesel engine drive according to different project needs.
