TM-80E Portable Turbine Flowmeter (Two Button Version)

Product Details

📌 Product Overview

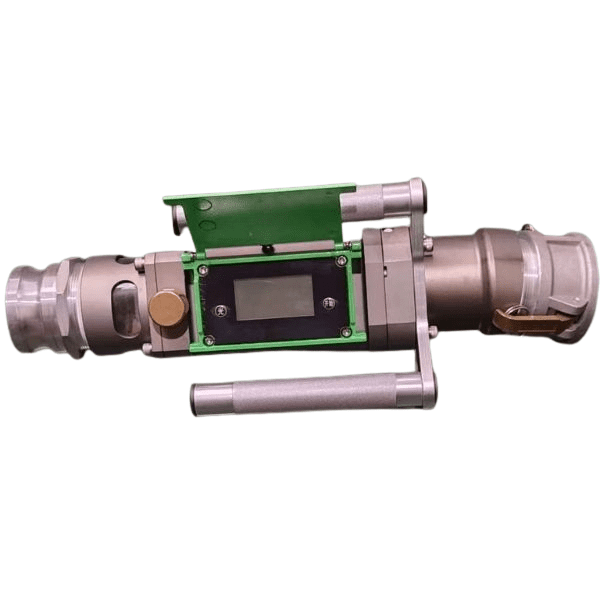

The TM-80E Portable Turbine Flowmeter is a portable explosion-proof measuring device designed for quick gravity fuel unloading and on-site fuel volume verification. It can be easily connected to the pipeline for accurate measurement of gasoline, diesel, kerosene, and ethanol, making it suitable for petroleum, chemical, and other industrial applications.

✅ Product Features

• Portable and compact design
• Quick and easy to use
• High accuracy up to ±0.2%
• Low pressure loss
• No fuel residue
• Easy maintenance
• Explosion-proof construction
• Built-in rechargeable battery
• User-friendly operation with simple button control
• Supports mobile app connection and calibration

📊 Technical Specifications

⚙️ Operational Highlights

• Open the control box cover to power on the device
• Close the control box cover to power off the device
• Press the Light button to turn the backlight on or off
• Press the Start button to begin measurement
• Measurement data is saved automatically after unloading is completed

🛠️ Installation Notes

• Designed for gravity discharge only
• Not suitable for fuel pump refueling discharge
• Cannot be used for retail fueling
• The inlet pipeline should remain horizontal
• The flowmeter should be installed with the outlet direction tilted down by 15°
• Inlet pipe diameter should not be less than 80 mm
• The length between the inlet and the manual unloading valve should not exceed 80 mm
• The outlet pipe diameter should not be less than 80 mm
• The outlet pipe length should not exceed 8 m
• Ensure the outlet is at the lowest point during installation

🏭 Applications

• Tank truck gravity fuel unloading
• Fuel transfer measurement
• On-site fuel volume verification
• Petroleum industry applications
• Chemical industry operations
• Portable unloading measurement in industrial fields

⚠️ Precautions

• Use only within the specified environmental conditions
• Do not charge in hazardous areas
• Check battery status regularly
• If not used for an extended period, charge at least once a week
• Use original charging accessories only
