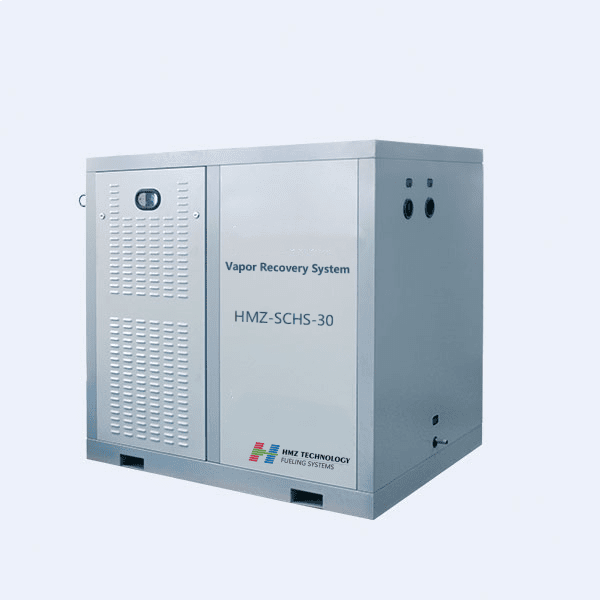

SCHS-30 Vapor Recovery Unit

The three stage gasoline vapor recovery condensation equipment HMZ-SCHS-30 VRU

vapor recovery condensation equipment hmz yqcl 2 vru

Category Vapor Recovery System Tags Vapor Recovery Unit, VRU

HMZ-SCHS-30 Vapor Recovery Unit(VRU), revolutionizing emission control with advanced technology. Its high capacity efficiently manages substantial emissions while promoting sustainability. The skid-mounted design ensures installation flexibility. Elevate your commitment to environmental responsibility – choose precision, innovation, and sustainability with our state-of-the-art Vapor Recovery Unit.

Additional information

Name of unit	Vapor recovery unit
Product model	HMZ-SCHS-30
Power	4.5KW
Voltage	380V
Frequency	50Hz
Vapor processing capacity	30m3/h
Dimension (L×W×H*mm)	1500×1100×1400

Product Details:

The vapor recovery unit is specially designed to process the vapor collected in filling stations and oil terminals. It can convert vapor from the vapor state into the liquid state, and then discharge the air after it is processed to meet the standard. Therefore, it ensures a balanced pressure in the storage tank and protects the atmospheric environment.

Unit Model Descriptions and Technical Parameters:

Name of parameter	Technical indicator
Product model	HMZ-SCHS-30
Name of unit	Vapor recovery unit
Explosion-proof mark	ExdeibmbⅡB T4 Gb
Dimension (Length×width×height)	1500×1100×1400
Vapor processing capacity	30m3/h
Operating temperature	-25℃～45℃
Port size	3/4 inch
Power	4.5KW
Voltage	380V
Frequency	50Hz

Contact us for more information about the vapor recovery system!
