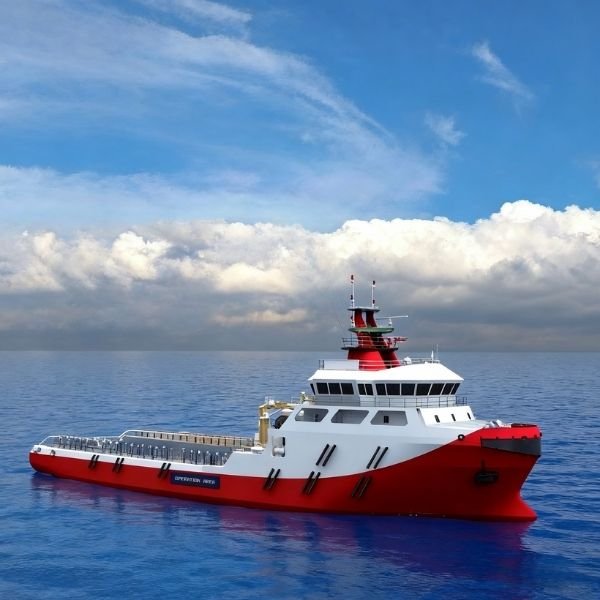

65M Anchor Handling Tug Supply Vessel (AHTS)

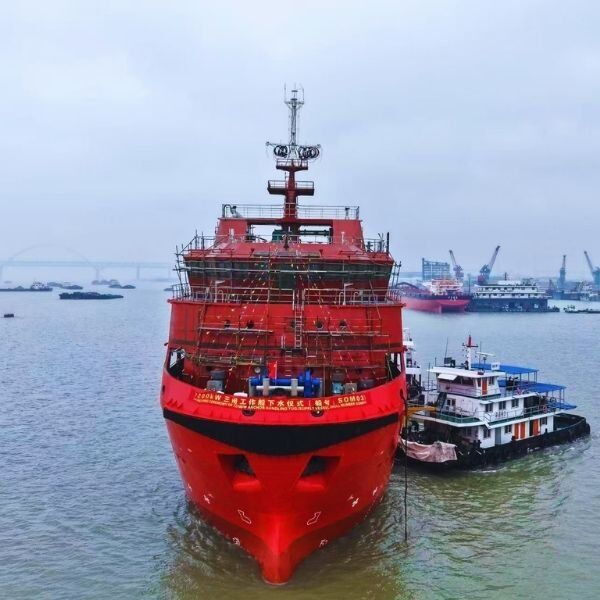

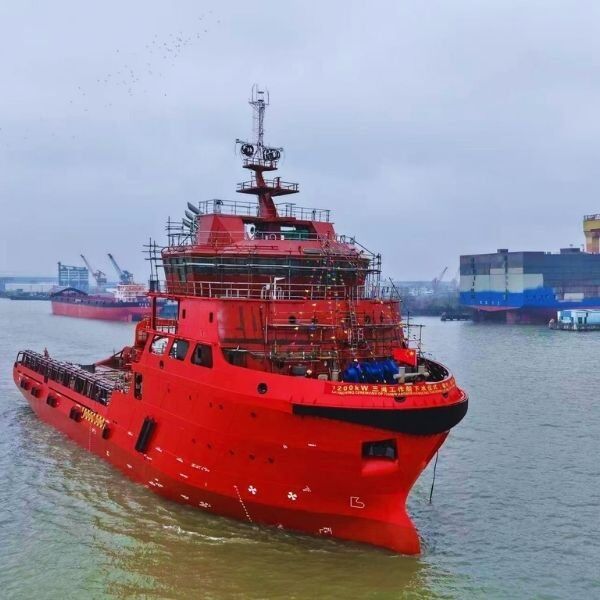

HMZ TECHNOLOGY is proud to present its newly built 65-meter Anchor Handling Tug Supply Vessel (AHTS), designed for offshore towing, anchor handling, and platform support operations.

Main Particulars

Length Overall (LOA): 65.0 meters

Beam (Moulded): 16.0 meters

Depth (Moulded): 6.5 meters

Design Draft: Approx. 5.8 meters

Deadweight (DWT): Approx. 2,500 tons

Gross Tonnage (GT): Approx. 2,500 GT

Propulsion & Power

Main Engines: 2 × Medium-speed diesel engines (total ~5,000–6,000 kW)

Propulsion: Twin fixed pitch propellers in nozzles

Bow Thruster: Yes

Stern Thruster: Yes

Service Speed: ≥13 knots

Anchor Handling & Towing

Bollard Pull: ≥100 tonnes

Towing Winch: Hydraulic double drum, high capacity

Anchor Handling Equipment: Shark jaws, towing pins, 4m stern roller

Deck Crane: Yes

Tugger Winches: Port & starboard mounted

Deck & Cargo Capacities

Deck Area: Approx. 400 m² clear space

Deck Strength: 10–15 t/m²

Deck Cargo: Pipes, containers, anchors

Fuel Oil: 600–800 m³

Fresh Water: 300–400 m³

Ballast Water: 800–1000 m³

Accommodation

• Capacity: Up to 40 persons
• Fully air-conditioned cabins
• Mess room, galley, hospital, changing rooms

Other Systems

• DP System: DP1 or optional DP2
• Fire Fighting: FiFi 1 Class
• Navigation: Radar, ECDIS, AIS, GMDSS
