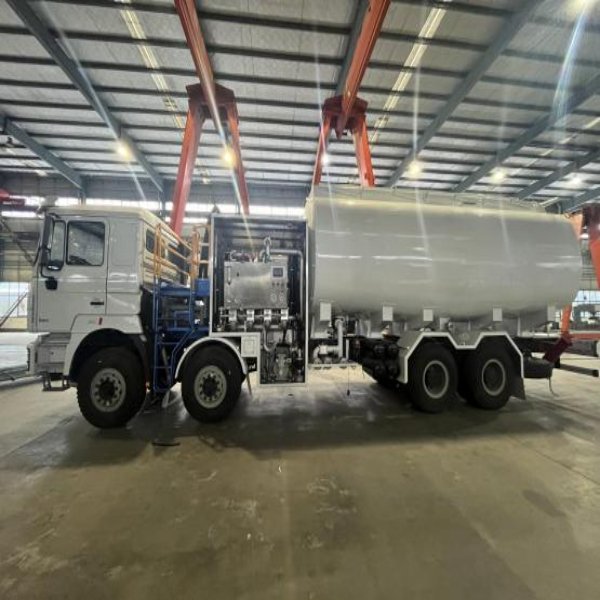

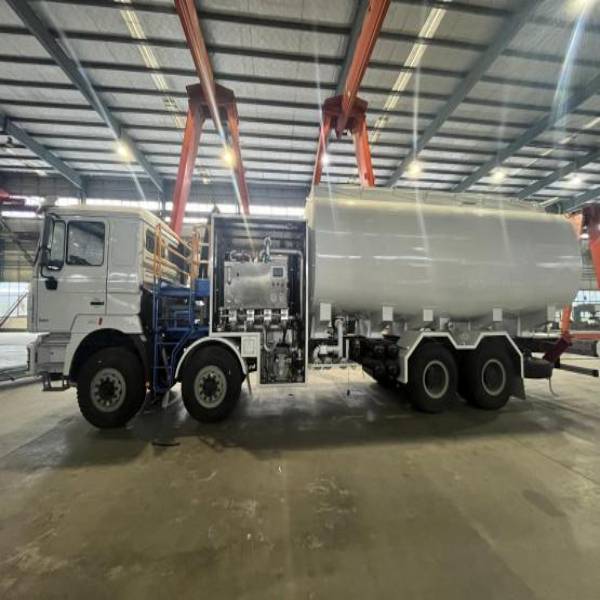

25m³ aircraft refuelingtruck

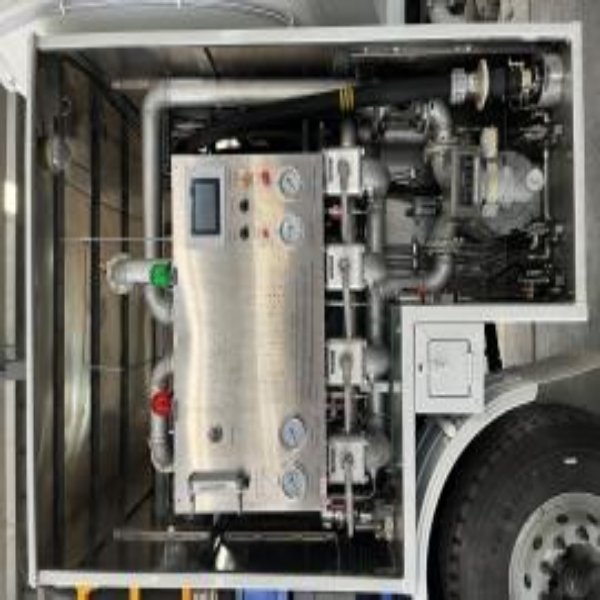

25 m³aircraftrefuelingtruck 1

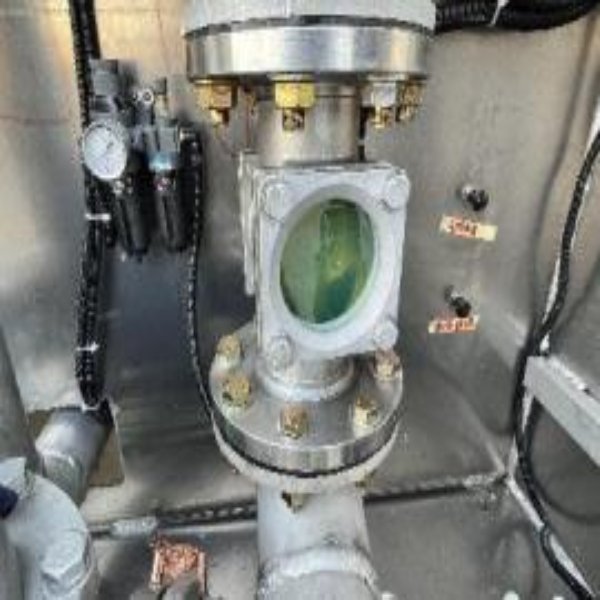

25 m³aircraftrefuelingtruck 3

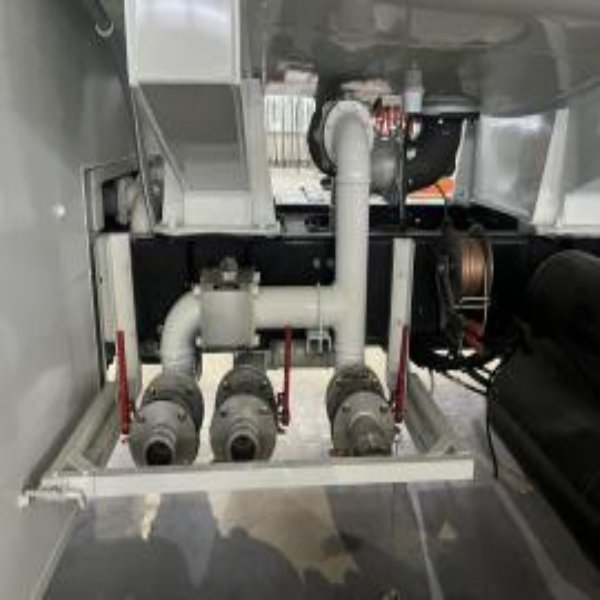

25 m³aircraftrefuelingtruck 2

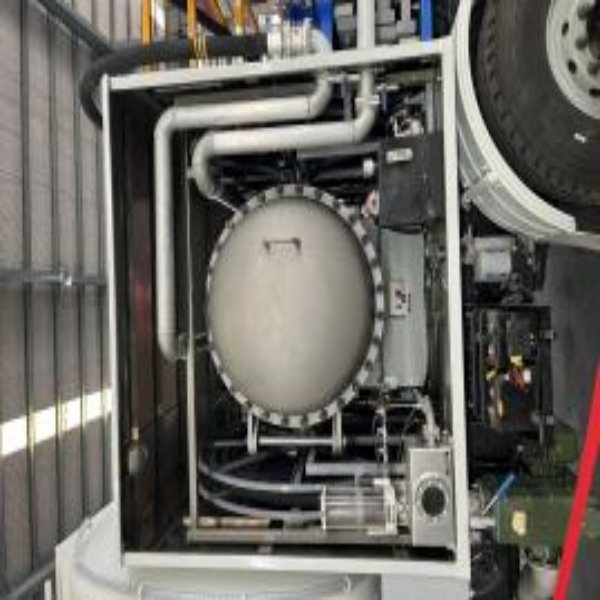

25 m³aircraftrefuelingtruck 4
Category Tags , , , ,
25m³ Pressure Aircraft Refueling Truck designed for aviation kerosene & gasoline. Features aluminum alloy tank (5182), 0.2-level accuracy flow meter, explosion-proof components, and hydraulic reels (DN38/DN50/DN65) with flow rates up to 1200 L/min. Equipped with safety valves, a self-priming pump, and an optional hydraulic lifting platform for efficient on-site refueling. Meets aviation safety standards for airports, military bases, and fleets.

Additional information

ASK FOR A QUOTE

Product Details:

HMZ Special Vehicle: 25m³ Aircraft Refueling Truck (Pressure Refueling)

Reference Parameters



Effective Volume 25m³ Quantity 1 Delivery Date –
Vehicle Model 25m³ Aircraft Refueling Truck Chassis Model / Fuel Type Aviation Kerosene, Aviation Gasoline
Vehicle Size Customizable Tank Size Customizable Tank Material Aluminum Alloy (5182)
Tank Thickness 5.6mm Head Thickness 5.7mm Plastic Lining /
Number of Partitions Factory Standard Storage Compartment / Ladder Requirements Rear Ladder
Filling Port 2 European-Style Tank Openings Installation Location Factory Standard Breather Valve 2
Discharge Port & Position Customizable – – – –

Key Configurations

  • Tank Structure: Single-compartment design with 5.6mm tank body, 5.7mm head, and 5.7mm partitions.
  • Fueling System:
    • 1 set of specialized refueling nozzles.
    • Hydraulic reels:
      • DN38 (20m, flow ≥350 L/min); optional DN50 (20m, flow ≥500 L/min).
      • Special DN65 hydraulic reel (20m) with dual aviation pressure-stabilizing joints (single-pipe flow ≥1200 L/min).
    • High-precision flow meter with 0.2-level accuracy and large digital display.
  • Safety & Control:
    • Explosion-proof lighting, coalescing separator (150°F/hr).
    • Self-priming centrifugal pump with auxiliary hydraulic transmission station.
    • 6-inch float level indicator, HYJ-63X joint valves on both sides, and elastic soft connections.
    • Operational control box: Remote magnetic control switch, manual accelerator (with cylinder), DeadMan control system, pressure control valves, Venturi tube, and magnetic refueling program controller.
  • Optional Features:
    • Hydraulic lifting platform between cabin and equipment compartment, equipped with 2 sets of DN65 hoses (4m, stainless steel swivel joints) and pressure-stabilizing valves.
    • Platform-mounted Venturi tubes with distance sensors.
  • Additional Equipment:
    • Tank top safety nets with movable railings, internal/external ladders.
    • 2 discharge boxes, tool boxes, and operational equipment boxes.
    • Foldable single-bridge mudguards, side/rear protection, ball valves, and factory-marked accessories.
    • Passivated tank surface with factory-standard logos and reflective decals.
