20m³ Pressure Aircraft Refueling Truck designed for aviation kerosene & gasoline. Features aluminum alloy tank (5182), 0.2-level accuracy flow meter, explosion-proof components, and hydraulic reels (DN38/DN50/DN65) with flow rates up to 1200 L/min. Equipped with safety valves, a self-priming pump, and an optional hydraulic lifting platform for efficient on-site refueling. Meets aviation safety standards for airports, military bases, and fleets.

Additional information

ASK FOR A QUOTE

Product Details:

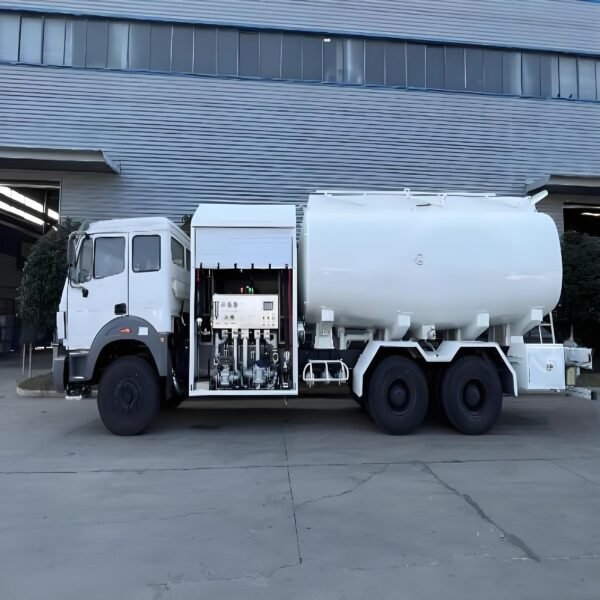

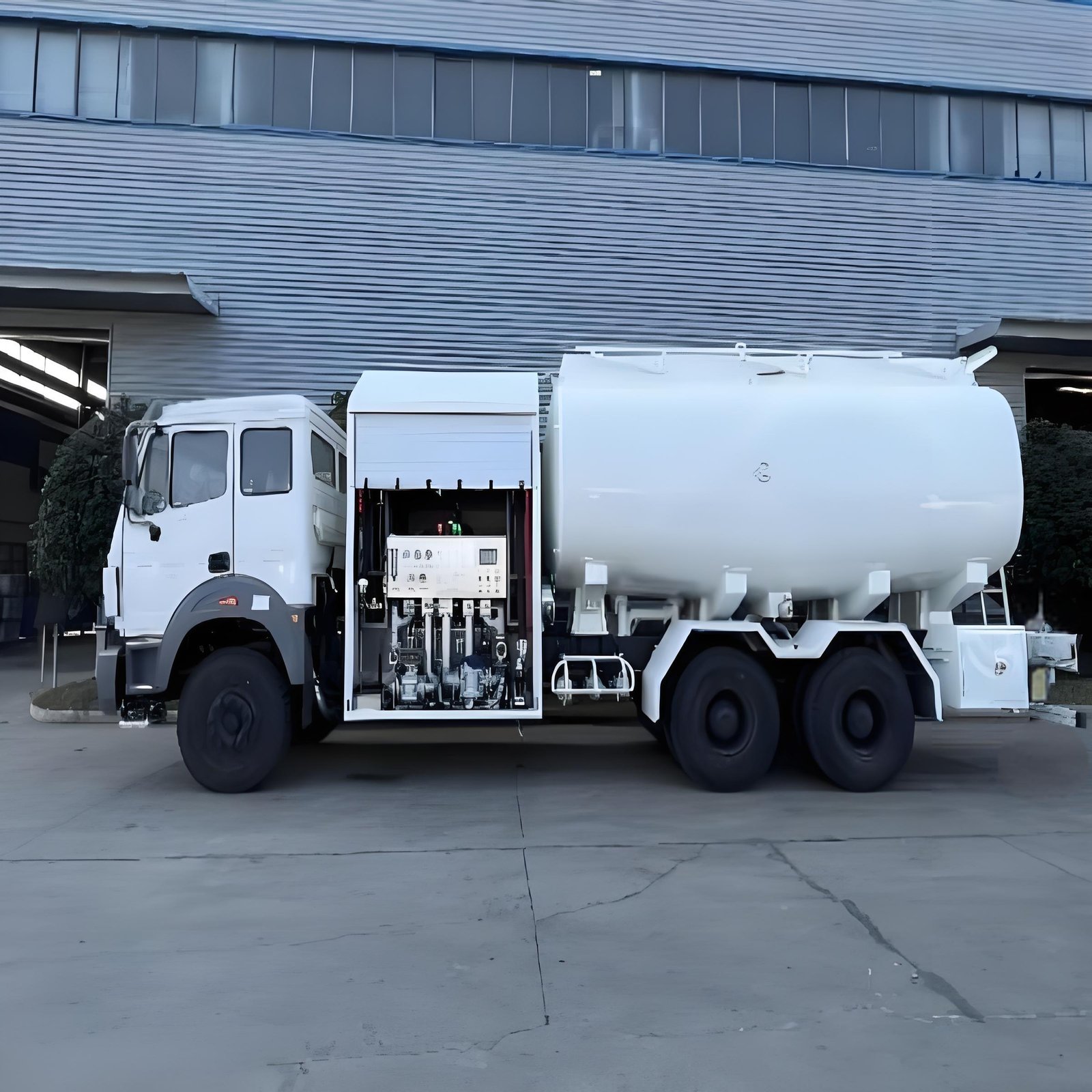

HMZ Special Vehicle: 20m³ Aircraft Refueling Truck (Pressure Refueling)

Reference Parameters



Effective Volume 20m³ Quantity 1 Delivery Date –
Vehicle Model 20m³ Aircraft Refueling Truck Chassis Model / Fuel Type Aviation Kerosene, Aviation Gasoline
Vehicle Size Customizable Tank Size Customizable Tank Material Aluminum Alloy (5182)
Tank Thickness 5.6mm Head Thickness 5.7mm Plastic Lining Thickness /
Number of Partitions Factory Standard Storage Compartment / Ladder Requirements Rear Ladder
Filling Port 2 European-Style Tank Openings Installation Location Factory Standard Breather Valve 2
Discharge Port & Position Customizable – – – –

Key Configurations

  • Tank Structure: Single compartment with 5.6mm tank body, 5.7mm head, and 5.7mm partitions.
  • Fueling System:
    • 1 set of special refueling truck nozzles.
    • Hydraulic reels:
      • DN38 (20m, flow ≥350 L/min); optional DN50 (20m, flow ≥500 L/min).
      • Special DN65 hydraulic reel (20m) with aviation pressure stabilizing joint (single-pipe flow ≥1200 L/min).
    • High-precision flow meter with 0.2-level accuracy and large character display.
  • Safety & Control:

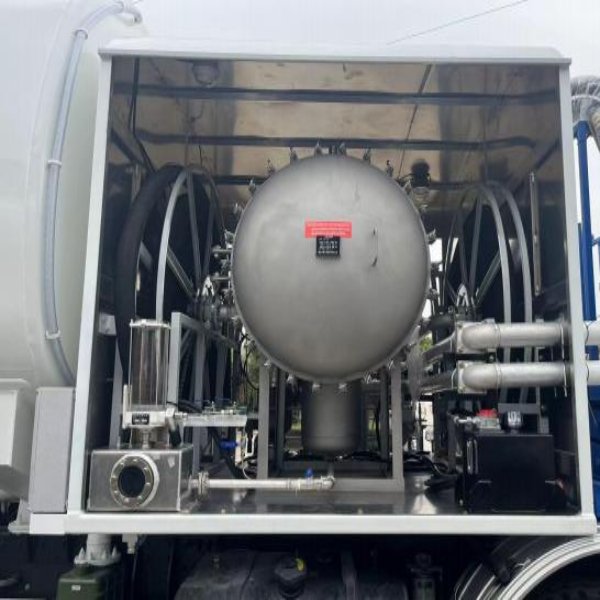

    • Explosion-proof lamp, coalescing separator (90 F/hr).
    • Self-priming centrifugal pump with auxiliary shaft hydraulic transmission station.
    • 6-inch float level indicator, HYJ-63X joint valves on both sides, and an elastic soft connection.

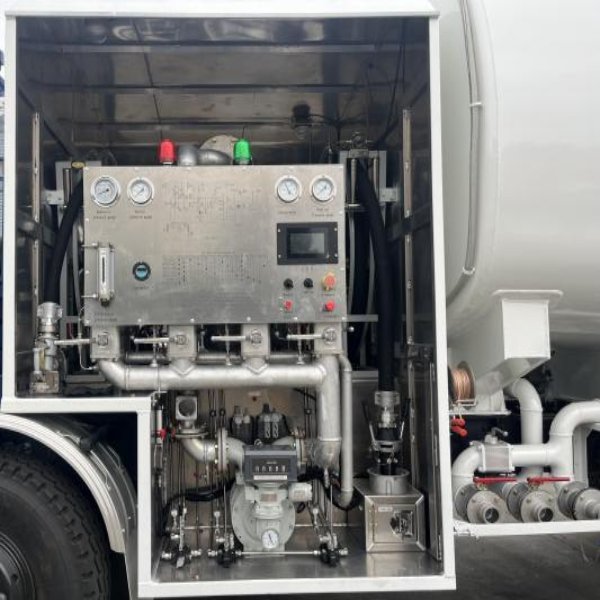

    • Operation control box: Remote magnetic control switch, manual accelerator (including cylinder), DeadMan control system, pressure control valve, Venturi tube, high-level liquid control valve, and magnetic program refueling controller.
  • Optional Features:
    • A hydraulic lifting platform between the equipment cabin and cab, equipped with 2 sets of DN65 hoses (4m, stainless steel rotating joint connection) and pressure stabilizing joint valves.
    • Platform-mounted Venturi tubes with distance sensors and coalescing separators (150°F/hr).
  • Additional Equipment:
    • Tank top protective nets with movable railings, internal/external ladders.

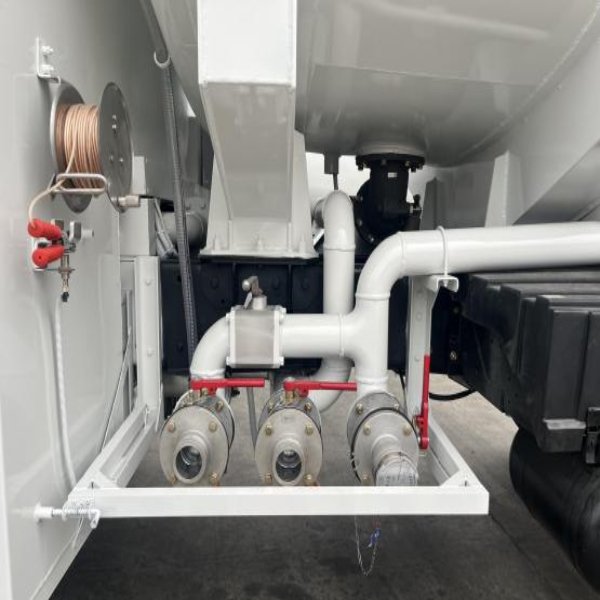

    • 2 discharge boxes, tool boxes, and operation equipment boxes.
    • Foldable single-bridge mudguards, lateral/rear protection, ball valves, joints, and bolts.
    • Passivated tank surface with factory-standard logos and reflective decals.
